This guide prioritizes multi-center serum/plasma studies where matrix effects and between-run reproducibility drive most rework. We adopt research-grade defaults (recovery 70–130%; %bias ≤25%; LLOQ precision ≤25% CV; inter-assay CV ≤25–30%) suitable for discovery-to-translational programs. For pivotal or regulated endpoints, consider tighter limits aligned with ICH M10 (e.g., accuracy ±15% and precision ≤15% at QC levels; ≤20% at LLOQ).
Scope and governance (read before you apply this framework): The acceptance targets below are fit-for-purpose, research-grade defaults intended for discovery-to-translational multiplex work, where analyte behavior and matrix effects vary widely. If your data will support a pivotal or regulated endpoint, apply stricter limits aligned with ICH M10 (and any sponsor/QA requirements), and document run acceptance, selectivity, stability, and dilution integrity accordingly. Regardless of context, confirm critical criteria per analyte and per matrix (e.g., serum vs EDTA plasma) and lock them in before sample analysis so QC decisions remain auditable.
What "Good" Looks Like in Multiplex Immunoassay QC
- Pre-defined acceptance criteria across batches and matrices
- Matrix effect evidence: spike recovery + parallelism
- Cross-reactivity risk control tied to panel design
- Quantitation clarity: LOQ + dynamic range + consistent flags
- Reproducibility package: inter-assay CV + bridging control trends
Acceptance criteria traceability (audit-ready quick reference)
| QC element | Evidence you generate | Research-grade default used in this guide | Pivotal/regulated context (typical) | Rationale / source type |
|---|---|---|---|---|
| Matrix effect: spike recovery | Low/mid/high matrix-matched spikes (with unspiked) | 70–130% recovery (review outliers); consider 80–120% for decision-critical markers | Tighter accuracy expectations often applied; evaluate across multiple matrix sources | Fit-for-purpose practice; align to bioanalytical accuracy concepts (ICH M10/FDA BMV) |
| Matrix effect: parallelism / dilution linearity | Serial 2-fold dilutions from MRD; back-calc × dilution factor | Agreement within ~20–30% RE/CV across valid points | Tighter limits may be needed for critical endpoints; document dilution integrity | Fit-for-purpose practice; linearity/verification concepts (CLSI) + bioanalytical dilution integrity expectations |
| LLOQ confirmation | Replicate low-level QCs across runs (in each matrix) | LLOQ precision ≤25% CV (per matrix) | LLOQ precision typically ≤20% CV; accuracy typically within ±20% at LLOQ | ICH M10 / FDA BMV concepts (ligand-binding assay validation) |
| Run-level QC acceptance | QC pass rate per run (and per level) | Pre-define pass rules; investigate drift/outliers | Often requires defined QC acceptance per run/level with documented deviations | ICH M10 / FDA BMV expectations (run acceptance governance) |
| Calibration curve fit | 4PL vs 5PL choice; weighting; residuals | Use simplest model that passes back-calculation; document weighting (e.g., 1/Y²) | Same, but with tighter acceptance and full traceability | Bioanalytical best practice (ICH/FDA-aligned) |
| Back-calculation (calibrators/QCs) | Nominal vs calculated; %bias/%RE; pass rate | Define %bias/%RE limits and pass rate; keep an audit trail | Often ±15% (±20% at LLOQ/ULOQ) and minimum pass rates | ICH M10 / FDA BMV concepts |
| Inter-assay reproducibility | Bridging controls + inter-assay CV trending | Inter-assay CV ≤25–30% (program dependent) + drift triggers | Often targets ≤15–20% total CV for critical endpoints | Fit-for-purpose practice; precision verification concepts (CLSI) with regulated-upgrade path |
| Cross-reactivity / selectivity | Single-analyte & mix challenges; blocking checks as needed | Challenge panel-relevant homologs at plausible levels; record bleed-through | Broader selectivity panels and stricter documentation may be required | Immunoassay specificity practice + selectivity expectations in bioanalytical guidance |
Note: Exact numerical limits should be locked per analyte/matrix and justified in your validation plan; cite the specific protocol/standard your QA group requires (e.g., ICH M10 for regulated studies).

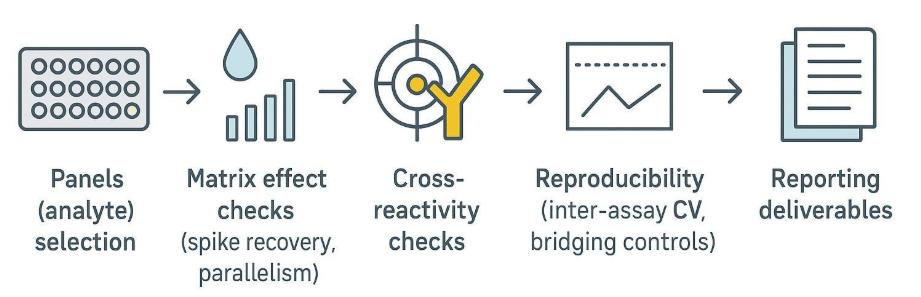

Figure 1. Multiplex immunoassay QC and validation framework overview.
Inputs Needed Before Validation Starts
- Intended use: discovery vs validation vs monitoring
- Matrix definition: serum, plasma, CSF, BALF, tissue lysate
- Sample handling metadata: freeze–thaw count, anticoagulant, storage/shipping
- Submission alignment: how to submit samples
- Sample metadata baseline: sample collection guidelines
Panel Design and Specificity Controls
Panel Design Scoping
- Analyte selection by biology and expected concentration range
- Dynamic range needs driving dilution strategy
- "Must measure" vs "nice to measure" analyte tiers
Think of panel design as setting traffic lanes before rush hour: if lanes (ranges) are too narrow for your cohort's biology, you'll get >ULOQ pileups and re-dilutions. Start from expected endogenous ranges and kit specs, then plan dilution tiers to keep most samples inside the reportable range.
Cross-Reactivity Risk (Panel-Level)
- Homolog families and epitope similarity hotspots
- Interference sources: heterophilic antibodies, RF-prone cohorts
- Specificity evidence types: single-analyte challenge, mix challenge, blocking checks
A practical approach ties specificity checks to the actual panel composition. Challenge each analyte with related proteins and pooled mixes at biologically plausible levels, and record any signal bleed-through. For RF/heterophilic risk cohorts, include blockers or confirmatory single-plex checks on flagged analytes.
Custom Panel Triggers
- Coverage gaps in standard panels
- Matrix-specific constraints requiring redesign
- Service entry point: multiplex cytokine panel services
Platform QC nuances at a glance (Luminex-first)
| Platform | Typical dynamic range | Sample volume (typical) | LOQ behavior | QC attention notes |
|---|---|---|---|---|
| Luminex xMAP | 3–5 logs | 10–50 µL | Matrix-sensitive LOQ | Emphasize parallelism, cross-reactivity checks, and MRD setting |
| MSD ECL | 4–5 logs | 10–25 µL | Low pg/mL LLOQs common | Similar MRD logic; check plate ECL background and weighting model |
| Simoa | 4–6 logs | 20–50 µL | fg/mL-level LLOQs | Redilution rules may differ due to ultra-low end; confirm dilution integrity |
| Olink PEA | ~4–5 logs | 1–10 µL | NPX units | Built-in controls; align external QC with NPX/reporting conventions |
Note: Use kit/instrument datasheets for analyte-specific values; these are planning aids, not universal specs.
Matrix Effect Testing (Core Evidence)
Matrix Effect Mechanisms
- Suppression/enhancement from background proteins and viscosity
- Anticoagulant-dependent shifts in plasma
- Common sample issues: hemolysis, lipemia, icterus
Matrix constituents can mask epitopes, alter binding kinetics, or introduce non-specific interactions. Multi-center serum/plasma work magnifies these risks because pre-analytical variability differs by site.
Spike Recovery (Matrix Effect)
- Spike levels: low/mid/high around expected range
- Recovery patterns indicating suppression vs enhancement
- Recovery stratified by matrix and dilution
Operationally, run matrix-matched spikes at low/mid/high around your expected endogenous levels. Calculate %Recovery = (measured_spiked − measured_unspiked)/nominal_spike × 100%. Research-grade acceptance commonly targets 70–130% with outlier review; tighten to 80–120% for decision-critical markers.
Parallelism (Matrix Effect)
- Serial dilution curve behavior vs expected pattern
- Non-parallel patterns indicating interference or non-specific binding
- Parallelism used to set minimum dilution
Use serial 2-fold dilutions from the minimum required dilution (MRD). After multiplying by the dilution factor, values across valid points should agree within roughly 20–30% RE/CV (research-grade). Failures inform a higher MRD or matrix-specific dilution.
Matrix Handling Alignment
- Standardize matrix across study arms when possible
- Matrix-specific dilution rules when mixing is unavoidable
- Reference: serum & plasma cytokine assay guide

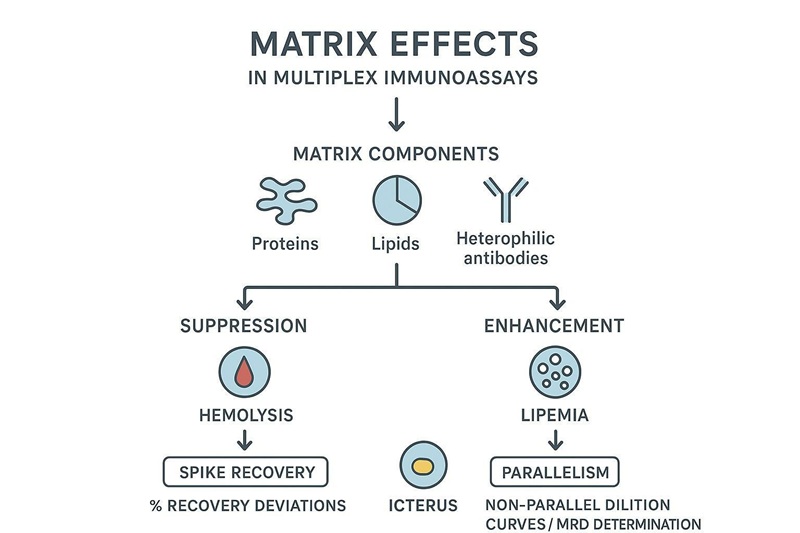

Figure 2. Matrix effect schematic linking interference to spike recovery and parallelism outcomes.
LOQ, Dynamic Range, and Quantitation Governance
Definitions That Must Match Across Stakeholders
- LOD/LLD vs LLOQ vs ULOQ
- Dynamic range vs reportable range
- Quantifiable vs detectable-only results
Clarity here prevents interpretive disputes. LLOQ/ULOQ define where reported numbers are reliable; below LLOQ, report as "<LLOQ" rather than extrapolating. Align definitions with project statisticians upfront.
LOQ Evidence Package
- Low-level precision supporting LLOQ confidence
- Matrix-specific LOQ confirmation
- Alignment reference: LLD, LLOQ, and ULOQ guidance
Confirm LLOQ with replicate low-level QCs across runs. For multi-matrix studies, verify LLOQ in each matrix (e.g., serum vs different plasma anticoagulants). Research-grade target: ≤25% CV at LLOQ; for pivotal endpoints, consider ≤20% CV per ICH M10 practice.
Out-of-Range Rules (OOR)
- <LLOQ: flagging and consistent censoring policy
ULOQ: re-dilution trigger rules - OOR audit trail required in final deliverables
Pre-specify redilution tiers (e.g., 1:5, 1:10) and dilution integrity checks. Maintain a full OOR handling log for auditability.
Calibration and Curve-Fit Transparency
Curve Fit and Standard Curve Governance
- 4PL vs 5PL consistency and documentation
- Back-calculation checks as calibration evidence
- Protocol reference: Luminex xMAP assay workflow
Use the simplest curve (4PL) that meets acceptance; move to 5PL for asymmetric curves. Define weighting (e.g., 1/Y²) and document residuals, parameters, and % back-calculation pass rates.
Lot and Run Traceability
- Reagent/standard/kit lot tracking
- Instrument and run settings recorded
- Change control notes included in reporting
Audit-ready records should tie every reported value back to lots, instruments, and software versions. Here's the deal: when drift happens, traceability is your fastest path to root cause.
Precision and Reproducibility (Inter-Assay CV)
Precision Language Alignment
- Intra-assay precision: within-run variability
- Inter-assay CV: between-run/batch variability
- Plate/day/operator factors captured as metadata
Reproducibility Design
- Bridging controls for batch-to-batch comparability
- High/mid/low QC samples for drift detection
- Stability checks across study timeline
Design for long studies by selecting a pooled serum/plasma bridging control aliquoted for the full timeline. Monitor inter-assay CV and mean shifts with control charts and trigger investigations when limits are exceeded.

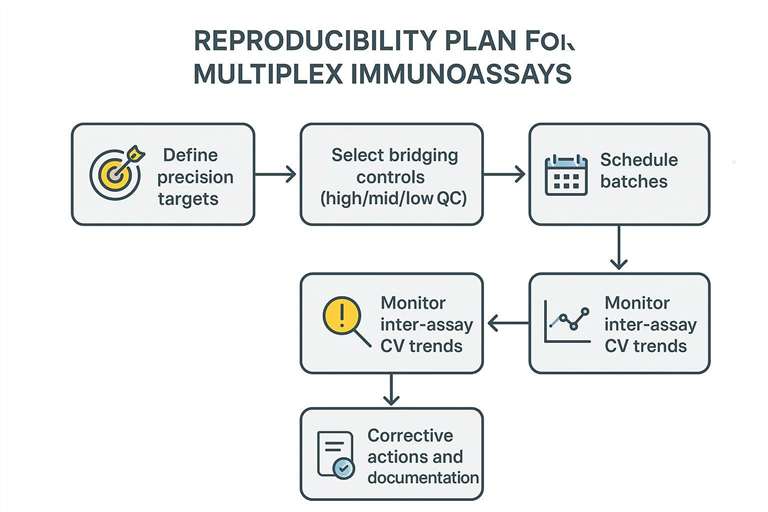

Caption: Figure 3. Reproducibility operational plan using bridging controls and inter-assay CV trending.
Deliverables and Audit-Ready Reporting
Minimum Data Deliverables
- Structured results table with matrix and dilution metadata
- Flags included: <LLOQ, >ULOQ, QC fail, rerun/redilution
- Data format reference: Luminex data generation & analysis
QC Summary Deliverables
- Matrix effect summary: spike recovery outcomes + parallelism outcomes
- Calibration summary: curve fit and back-calculation status
- Reproducibility summary: inter-assay CV and drift notes
Escalation and Rerun Governance
- Trigger list: QC fail, drift, persistent OOR, suspected interference
- Action hierarchy: investigate → redilute → rerun → annotate/exclude
- Decision log included in final report package
CRO / Vendor QC Evidence Tables
| QC Domain | Primary Evidence | What It Protects Against | Typical Decision Output |
|---|---|---|---|
| Matrix effect | Spike recovery + parallelism | Suppression/enhancement bias | Matrix dilution rule + flags |
| Cross-reactivity | Specificity challenge results | False positives from non-target binding | Panel redesign or confirmatory plan |
| LOQ & dynamic range | LLOQ/ULOQ evidence + OOR rules | Over-interpretation outside range | Flagging + redilution triggers |
| Calibration | Curve fit + back-calculation status | Quantitation instability | Rerun/investigation notes |
| Reproducibility | Inter-assay CV + bridging trends | Batch drift over time | Drift triggers + corrective actions |
| Deliverable Category | Required Fields | Why It Matters | |
| --- | --- | --- | |
| Sample metadata | sample_id, matrix, anticoagulant, group/timepoint | Comparability and traceability | |
| Assay metadata | dilution, batch_id, plate_id, well, lot IDs | Batch consistency and audit | |
| Quantitation | analyte, value, unit, LLOQ, ULOQ | LOQ and dynamic range clarity | |
| QC flags | <LLOQ, >ULOQ, QC_fail, rerun, redilution | Rule-based interpretation |
Related Internal Reading
- LOQ rules and reporting flags: LLD/LLOQ/ULOQ in multiplex assays
- Matrix planning baseline: serum & plasma cytokine assay guide
- Submission metadata alignment: how to submit samples
FAQ
What is matrix effect in multiplex immunoassays?
Matrix effect is matrix-driven signal suppression or enhancement that biases quantitation. It is evaluated with spike recovery and parallelism in the real sample matrix.
How do spike recovery and parallelism differ for matrix effect testing?
Spike recovery checks whether added analyte is measured accurately in matrix, while parallelism checks dilution behavior consistency. Together they identify suppression/enhancement and non-specific binding patterns.
What is cross-reactivity in multiplex immunoassays?
Cross-reactivity is non-target binding that distorts measured signals. It is controlled through panel design and specificity challenge evidence tied to the analyte set.
How do you define LLOQ and ULOQ in a multiplex immunoassay QC plan?
LLOQ and ULOQ define the quantifiable range where results are reliable. Values outside the range should be flagged and handled with pre-defined OOR rules.
What is inter-assay CV and why does it matter for reproducibility?
Inter-assay CV quantifies variability across runs or batches. It supports reproducibility claims when combined with bridging controls and drift monitoring.
How should outsourced projects standardize QC reporting for multiplex immunoassays?
QC reporting should include matrix effect evidence, calibration status, LOQ flags, and reproducibility summaries. Standardized fields and decision logs reduce rework and interpretation risk.
