Introduction
Principal investigators, immunoassay scientists, core facility managers, and CRO project leads share the same objective: generate reliable, decision-ready cytokine data without wasting precious samples. A rigorous, end-to-end Luminex assay workflow makes that possible. This guide walks you through a ten-step, QC-forward method—design to data—so you can anticipate pitfalls, set acceptance criteria, and move confidently from raw MFIs to reportable concentrations.
Key Takeaways
- A QC-forward Luminex assay workflow reduces reruns and improves reproducibility across plates and lots.
- Define hypotheses, matrices, species, and plex early; plan dilutions, ranges, and controls before day one.
- Calibrate weekly and verify daily; protect beads and reagents from light; monitor bead counts, gates, and background in real time.
- Choose 4PL vs 5PL based on curve symmetry and use appropriate weighting to handle heteroscedasticity.
- Interpret LLOQ/ULOQ with conservative rules: dilute-and-rerun for high samples; report <LLOQ when below quantitation.
Design & Panel Selection
Define hypotheses, matrices, species, plex level
Start with the biological question and translate it into analyte lists tied to pathways (inflammation, oncology, autoimmunity, infection). Confirm matrix compatibility (serum, plasma, cell culture supernatant, PBMC lysate) and species (human, mouse, rat) to avoid coverage gaps. Pick a plex level that balances target breadth with throughput and bead count reliability.
Disclosure: We collaborate with Creative Proteomics cytokine panel service. Their ready-to-run panels and custom configuration can illustrate a practical approach: select a baseline panel aligned to your pathway, then add/remove analytes by hypothesis and species. Use panel documentation to confirm matrix options and typical abundance ranges.
For species-specific context, human-focused panels—such as the Human Luminex multiplex assay panel—provide an overview of common cytokines and expected ranges that help you plan dilutions and volumes.
Target coverage, expected ranges, dilutions, volumes
Build a target coverage grid: analyte → pathway role → expected range (per matrix/species) → minimum required dilution (MRD) → planned sample volume per well. Use matrix-matched standards when available. If expected concentrations exceed the top standard, predefine dilution factors and rerun rules.
Acceptance criteria and controls planning
Define acceptance criteria before touching samples. Typical examples (confirm with kit lot cards): recovery 70–130% (or 100% ±30%), intra-assay CV ≤10%, inter-assay CV ≤20%, back-calculation accuracy near LLOQ/ULOQ within ±20%. Plan low/high QC controls and reference standards per plate. See vendor guidance from Sigma‑Aldrich MILLIPLEX equipment settings and Bio‑Techne/R&D Systems validation notes for framing.
Reagents, Samples & Submission
Kit lot readiness and reagent handling
Verify lot readiness (calibration/verification cards, barcodes) and review package inserts for reconstitution, storage, and light protection. Vortex or briefly sonicate beads to ensure uniform suspension. Keep detection antibodies and SAPE protected from light; avoid repeated freeze–thaw.
Sample collection, preparation, and matrix mitigation
- Serum: Allow clotting (≈30–60 min), centrifuge (≈1,000 × g, 10 min), aliquot, store at −20 to −80 °C; avoid hemolysis.
- Plasma: Use EDTA or carefully controlled heparin; process promptly; aliquot and store similarly.
- Pre-assay: Thaw completely, vortex, high-speed spin (≥10,000 × g) to clear particulates; dilute with assay buffer; consider matrix-matched standards.
- Mitigate matrix effects with optimized buffers, appropriate MRD, spike‑recovery and dilutional parallelism tests, and heterophilic blocking where indicated.
Outsourced submission and metadata requirements
When outsourcing, include sample type/matrix, species, collection tubes/anticoagulants, anticipated ranges, desired analytes, planned dilutions, freeze–thaw counts, and any pre-analytical treatments. If configuring a panel, provide hypotheses and acceptance criteria. Intake forms and species coverage on the Luminex cytokine detection service overview can help structure submissions.

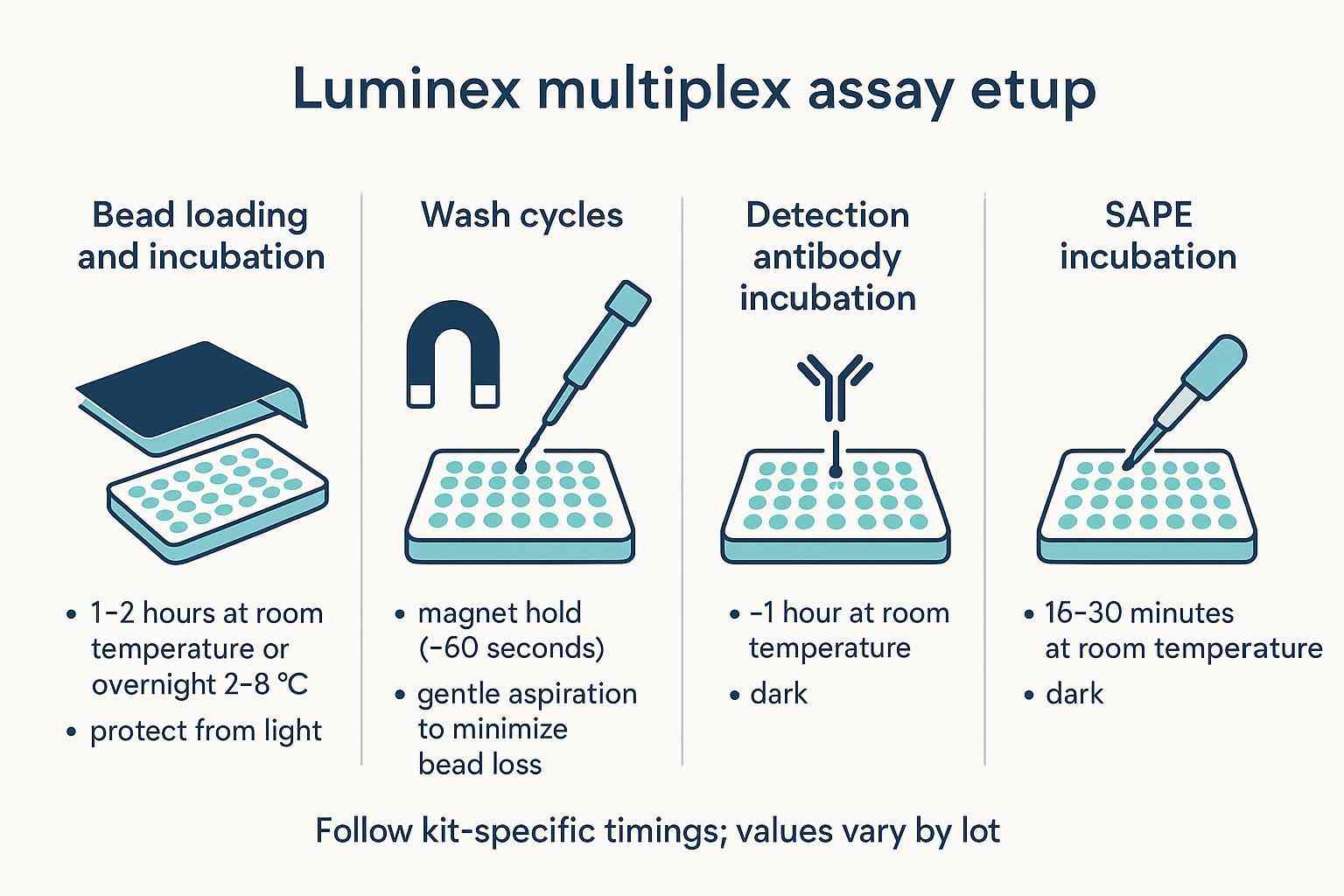

Assay Setup, Washes & Detection
Bead loading, incubation options, light protection
Load conjugated beads into wells and incubate per kit protocol—often 1–2 h at room temperature with shaking or overnight at 2–8 °C. Protect beads and detection/SAPE incubations from light to prevent photobleaching; cover plates with foil as specified.
Wash cycles, magnet holds, and minimizing bead loss
Perform 2–4 washes depending on the kit. For magnetic plates, allow a magnet hold (~60 s) before aspiration to settle beads; adjust plate washer probe height to avoid disturbing bead pellets. Use Tween‑containing wash buffers as recommended to prevent clumping.
Detection antibodies and SAPE timing
Typical detection antibody incubation is ~1 h at room temperature, followed by SAPE for 15–30 min. Many kits require dark incubation for both steps; follow the package insert closely.
Instrument Prep & Acquisition in the Luminex Assay Workflow
Prime, calibrate, verify; gates and bead counts
Calibrate weekly and verify daily or after calibration/moves/maintenance using the manufacturer's kits to confirm optical channels and performance targets. Warm lasers if required (e.g., Luminex 200 after extended inactivity). Configure doublet discriminator (DD) gates and RP channels per kit recommendations, then confirm bead counts per region meet minimums; stable MFI generally requires ≥35 beads per analyte, with 50 often recommended in vendor guidance.
For instrument context across MAGPIX, Luminex 200, FLEXMAP 3D, and INTELLIFLEX platforms, see the Luminex instruments overview.
Acquisition targets and export metadata
Set batch parameters for gate ranges and minimum bead counts; ensure plate layouts and thresholds are saved. During acquisition, monitor bead maps and per‑well flags. Export batch results with analysis settings, gate histories, and threshold info to support audit trails and downstream analysis.
Common pitfalls and on-run checks
Watch for low bead counts (correct gates, increase wash stringency, prime instrument, clean probe, dilute viscous samples), high background (enhanced startup cleaning, more washes, protect reagents from light), and gating errors (confirm bead regions and adjust gates). If anomalies persist, recalibrate and verify before continuing.
Curve Fitting & Quantitation
Choose 4PL vs 5PL with appropriate weighting
Select 5PL when the standard curve is asymmetric; use 4PL for symmetric curves. Diagnose fit quality via residual plots, % back‑calculation error for standards/QCs, and precision across replicates. To handle heteroscedasticity, compare weighting schemes (e.g., 1/Y² vs 1/Y) and document the selection.
Define LLOQ/ULOQ and reportable ranges
Set LLOQ/ULOQ based on where accuracy and precision remain acceptable. Values below LLOQ should be reported as <LLOQ; values above ULOQ should be diluted and rerun when possible rather than extrapolated. Align these bounds to kit‑validated performance.
Back-calculation, recoveries, and precision targets
Evaluate back‑calculated standard concentrations; aim for recoveries like 70–130% (or 100% ±30%) and replicate CVs within pre‑defined thresholds (e.g., intra‑assay ≤10%, inter‑assay ≤20%) where feasible. Confirm matrix suitability via spike‑recovery and dilutional parallelism. For more on outputs and analysis, see Luminex data generation and analysis.
Data Cleaning, Normalization & Reporting
Flag low bead counts, outliers, background issues
Configure minimum bead count thresholds to flag wells; review residuals and replicate CVs to identify outliers; use negative controls to spot elevated background or non‑specific signals.
Cross-plate normalization with reference standards
Include reference controls on every plate. Normalize MFIs or concentrations to reduce lot/plate variability, and use consistent analysis settings for batch recalculation. Document any adjustments to preserve comparability.
Deliverables: MFIs, curves, ranges, QC metrics
Deliver a package with MFI tables, fitted curves (4PL/5PL), reportable ranges (LLOQ/ULOQ), QC metrics (recoveries, CVs, bead counts), and acquisition metadata. Provide visualizations (heatmaps, scatter plots) and clear notes on excluded or censored values.
Example Acceptance Criteria Snapshot (confirm with kit documents; values vary by lot)
| Aspect | Example target |
|---|---|
| Recovery (standards/QCs) | 70–130% or 100% ±30% |
| Back-calculation accuracy near LLOQ/ULOQ | ±20% |
| Precision (intra-assay CV) | ≤10% |
| Precision (inter-assay CV) | ≤20% |
| Minimum beads per analyte | ≥35 (50 recommended) |
FAQ
How do you prepare serum or plasma samples for a Luminex assay?
Centrifuge promptly (≈1,000 × g, 10 min), aliquot, and store at −20 to −80 °C. Before the run, thaw fully, vortex, high‑speed spin (≥10,000 × g) to clear particulates, and dilute in assay buffer. Use matrix‑matched standards when available.
What are common problems in Luminex assays and how do you troubleshoot them?
Low bead counts (check gates, increase wash stringency, prime instrument, clean probe, dilute viscous matrices); high background (enhanced cleaning, more washes, protect reagents from light); gating errors (confirm bead region assignments and adjust).
What is MFI in Luminex and what does it mean?
MFI stands for Median Fluorescence Intensity—the per‑bead population signal used to compute concentrations via the standard curve. Reliable quantitation typically needs ≥35 beads per analyte, with 50 often recommended.
How do you interpret LLOQ/ULOQ and handle values outside the quantitation range?
Treat LLOQ/ULOQ as the reliable quantitative bounds. Report values below LLOQ as <LLOQ; for high samples above ULOQ, dilute and rerun rather than rely on extrapolation.
How do you evaluate a Luminex standard curve (4PL vs 5PL) and QC acceptance criteria?
Choose 5PL when curves are asymmetric and consider 1/Y² weighting to address heteroscedasticity. Evaluate fit via residuals, recoveries (e.g., 70–130%), precision (CVs), and ensure back‑calculation accuracy near LLOQ/ULOQ is within predefined limits.
Conclusion
From hypothesis to reportable ranges, this ten‑step Luminex assay workflow helps you plan targets, protect reagents, tune acquisition, and validate quantitation so your data withstands scrutiny. Next steps: lock in acceptance criteria, document analysis settings, and iterate panel design based on spike‑recovery/parallelism results. If you prefer a configured start, you can explore panels and customization options through the Creative Proteomics cytokine panel service to align analytes and matrices to your study plan.
References:
- Hruschuk, Oksana, et al. "Development and validation of a pentaplex magnetic bead‑based Luminex assay for simultaneous quantification of human IgG to pertussis and toxoid antigens." Journal of Immunological Methods 514 (2023): 113542. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10278353/
- de Jager, Willem, et al. "Validation and comparison of Luminex multiplex cytokine analysis with ELISA: a robust alternative for cytokine profiling." Journal of Immunological Methods 443 (2017): 85–93. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5738327/
- Park, Sun Hee, et al. "Development of a bead‑based multiplex assay for use in high‑throughput serosurveillance on the Luminex Magpix platform." Journal of Clinical Microbiology 60.5 (2022): e02348‑21. https://doi.org/10.1128/JCM.02348-21
- Chard, Alice N., et al. "Integration of multiplex bead assays for parasitic disease serosurveillance: methods and field validation." PLoS Neglected Tropical Diseases 10.5 (2016): e0004699. https://doi.org/10.1371/journal.pntd.0004699
