Introduction
Multiplex cytokine profiling turns limited specimens into broad, decision-ready immune readouts. In preclinical and translational studies, a well-chosen Luminex cytokine panel accelerates mechanism discovery, pharmacodynamic readouts, and safety monitoring by quantifying dozens of analytes from tiny volumes. Compared with single-plex formats, a Luminex multiplex panel reduces sample consumption and batch effects while providing a coherent profile across pathways. This guide offers a practical, QC-driven selection framework to help you move from pathway definition to a fit-for-purpose multiplex biomarker panel.
When do multiplex cytokine panels and Luminex assay kits outperform single-plex approaches? When your questions demand pathway-level coverage, when specimens are scarce (e.g., rodent serial bleeds, precious human serum/plasma, CSF), and when cross-study comparability is critical. You'll gain a stepwise process—pathway/species/matrix → shortlisting → pilot comparison → criteria lock—plus numeric acceptance ranges for sensitivity, precision, recovery, and parallelism so you can defend your selection.
Key takeaways
- Start with biology and logistics: define pathway hypotheses, species, and matrix, then align plex to sample volume and instrument access.
- Use a shortlist-and-pilot approach: pit a predefined multiplex cytokine panel against a custom cytokine panel design and compare detectability, precision (CV), recovery, and parallelism.
- Lock fit-for-purpose criteria before scaling: set targets for LOD/LLOQ, dynamic range, matrix effect tolerance, and dilution strategy; document lot numbers and QC gates.
- Match instrument to throughput: MAGPIX for ≤50-plex, Luminex 200 for mid/high-plex, FLEXMAP 3D for high-plex/high-throughput with 96- or 384-well formats.
- Treat "panel vs kit" correctly: panel is the analyte design; kit is the delivery format. Choose predefined vs custom based on coverage and validation needs.

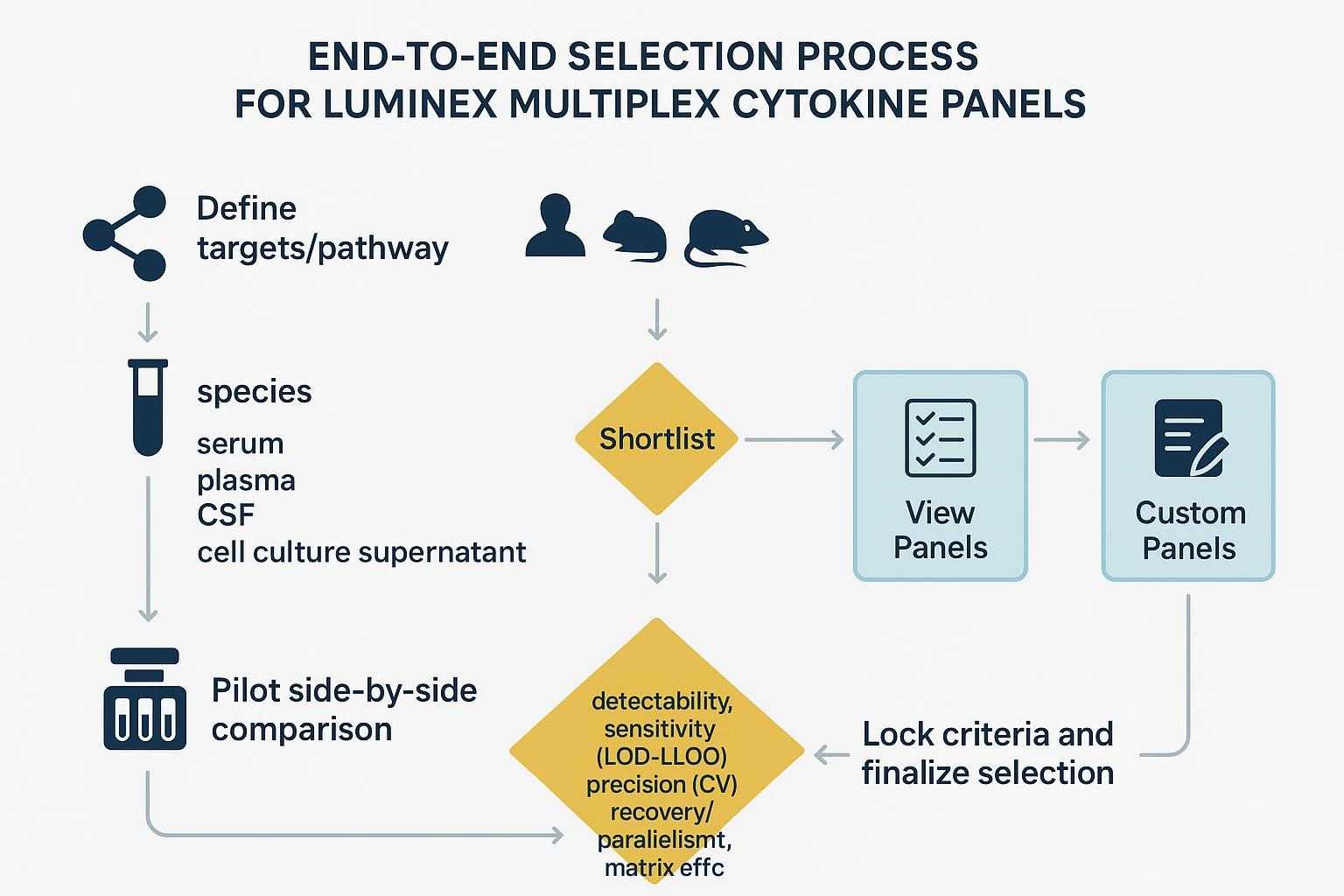

Selection workflow at a glance
A robust selection workflow keeps science and operations aligned: define targets and constraints, shortlist View Panels vs Custom Panels, run a head-to-head pilot, then lock criteria and finalize selection.
Define pathway, species, and matrix
Start from the biology. Specify pathway-based panel needs (e.g., Th1/Th2/Th17, chemokine signaling, interferons) or a disease-focused panel for IO, autoimmunity, or infection. Declare species (human, mouse, rat) and sample type (serum, plasma, CSF, cell culture supernatant). Align desired plex (number of analytes) with available sample volume and expected concentration ranges to minimize repeat freeze–thaws and re-runs.
Shortlist View Panels vs Custom Panels
Build a shortlist that includes at least one predefined multiplex cytokine panel ("View Panel") and one custom option. A predefined panel accelerates startup and is often optimized for common matrices; a custom cytokine panel allows analyte selection aligned to your pathway hypothesis, adds/removes markers, and tunes plex to your sample constraints. Use manufacturer CoAs to note LLOQ/ULOQ, recommended minimum required dilution (MRD), and matrix recovery.
Pilot, compare performance, and lock criteria
Run a side-by-side pilot across 10–25 representative samples per matrix. Compare detectability (>80% above LOD across your cohort), precision (intra-assay CV ≤10–15% mid-range; ≤20% at LLOQ), spike recovery (80–120% preferred 90–110%), and parallelism/dilutional linearity (R² ≥0.95; %RE ≤20%). Choose the panel that meets your fit-for-purpose criteria with the least rework risk.
For example, a de-identified client pilot study:human serum (n=20) compared Panel A (predefined 25-plex) vs Panel B (custom 28-plex). Results: detection rate 88% (Panel A) vs 92% (Panel B); median intra-assay CV 11% vs 9%; spike recovery 85–115% (Panel A) vs 90–110% (Panel B); parallelism R² median 0.96 (%RE ≤18%) for both. Selection rationale: Panel B was chosen for slightly higher detectability and tighter CV/recovery within predefined acceptance windows, reducing expected re-runs and preserving limited sample volume.
Tip: To scan available ready-to-run options for a mouse study, many teams begin with representative View Panels such as the Mouse Luminex Multiplex Assay Panel.
Performance and fit-for-purpose criteria
Choosing a Luminex multiplex panel is ultimately a fit-for-purpose decision. Define numerical acceptance windows and evaluate them during your pilot.
- LOD/LLOQ: Verify LLOQ ≤ anticipated biological minimum; precision ≤20% CV at LLOQ.
- Dynamic range: ≥3 log (≥1000×) across standard curve where possible.
- Intra-assay precision: CV ≤10–15% (mid/high); ≤20% at LLOQ.
- Inter-assay precision: CV ≤15–20% across days/plates.
- Spike recovery: 80–120% (prefer 90–110%).
- Parallelism: %RE ≤20% and R² ≥0.95 across serial dilutions above LLOQ.
- Dilutional linearity: R² ≥0.95; recoveries within 70–130%.
- MRD confirmation: confirm MRD by dilutional linearity/parallelism in matrix.
- Extrapolation rule: do not report below LLOQ; dilute-and-reanalyze above ULOQ.
Sensitivity and dynamic range targets
- Sensitivity/LOD/LLOQ: For low-abundance cytokines, ensure the LLOQ sits below anticipated biological levels. Use CoA-reported LLOQs as a starting point and verify with dilutions in matrix. EP17-style verification defines LoQ as the lowest concentration achieving your precision/accuracy goals (e.g., ≤20% CV and 80–120% recovery).
- Dynamic range: A broad, verified dynamic range reduces re-runs. Plan for at least three orders of magnitude across standard curves for heterogeneous cohorts. Avoid extrapolating below LLOQ; for above-ULOQ signals, set dilution rules.
Precision, reproducibility, and parallelism
- Intra-assay precision (repeatability): target CV ≤10–15% at mid/high concentrations; allow up to 20% at LLOQ.
- Inter-assay precision (reproducibility): target CV ≤15–20% at mid-range across days/plates.
- Parallelism: verify that serial dilutions of endogenous samples recover within 80–100% above LLOQ with %RE ≤20% and R² ≥0.95. This supports comparability across matrices and timepoints.
Matrix effects, recovery, and minimum required dilution
- Matrix effect assessment: perform spike-and-recovery in your actual matrix (serum vs plasma vs CSF vs supernatant). Prefer 80–120% recovery with tighter 90–110% when feasible.
- Minimum required dilution (MRD): follow kit MRD to mitigate matrix interference; confirm during pilot via dilutional linearity.
- Cross-reactivity: select validated antibody pairs and consider magnetic/paramagnetic bead kits; crosstalk checks (monoplex vs multiplex) reduce interference risk.
Validation checklist (COU-driven):
| Parameter | Target (typical, COU-driven) | Notes |
|---|---|---|
| Intra-assay precision | CV ≤10–15% (mid/high), ≤20% at LLOQ | Assess by analyte |
| Inter-assay precision | CV ≤15–20% (mid) | Run across plates/days |
| Spike recovery | 80–120% (prefer 90–110%) | Matrix-dependent |
| Parallelism | 80–100% recovery; %RE ≤20% | Dilutions above LLOQ |
| Dilutional linearity | R² ≥0.95; 70–130% recovery | Serial dilutions |
| LLOQ/ULOQ rules | No extrapolation below LLOQ; dilute >ULOQ | Declare in SOP |
Platform and instrument choice
Instrument compatibility should match your plex and throughput needs as well as available well formats and budget constraints.
MAGPIX vs Luminex 200 vs FLEXMAP 3D
The three common xMAP instruments differ in plex capacity and throughput. Match your study scale to the right platform.
| Instrument | Plex Capacity | Read Time (96-well) | 384-well | Typical Throughput | Typical Use Cases |
|---|---|---|---|---|---|
| MAGPIX | Up to 50 | ≤60 min | No | Mid-plex; imaging-based | Routine mid-plex runs with magnetic beads |
| Luminex 200 | Up to 100 (80 on MagPlex) | ≤45 min | No | Mid/high-plex | Broader multiplex across sample types |
| FLEXMAP 3D | Up to 500 regions | ≤20 min | Yes | High-plex/high-throughput | Large screens; 96-/384-well flexibility |
Manufacturer references: see DiaSorin's official pages for the MAGPIX system, the Luminex 200 system, and the FLEXMAP 3D system. The FLEXMAP 3D page notes up to 500 bead regions and rapid plate read times (publisher pages consulted in 2025–2026).
Sample volume, well formats, and throughput planning
Balance plex against sample volume. If you need ≤50-plex and have modest throughput, MAGPIX with magnetic beads is often sufficient. For higher plex or faster reads, Luminex 200 or FLEXMAP 3D may be advantageous. If scaling to 384-well plates, FLEXMAP 3D provides efficiency and higher plate-per-day capacity. Align per-plate controls and QCs with your run plan.
Software and analysis compatibility
Plan for 4PL/5PL curve fitting and consistent model selection across plates for comparability. Lock your outlier policy in advance and centralize analysis to reduce analyst-to-analyst variability. Disclosure: Creative Proteomics is our product. In practice, teams often explore ready-to-run View Panels for rapid starts and then request a custom cytokine panel configuration to add/remove analytes; for example, see a customization-enabled page here: Human Soluble Receptor Panel Service. This approach keeps panel design and data processing aligned, especially when harmonizing multi-study comparability.
Validation and QC essentials
Fit-for-purpose validation scope for biomarker assays
Define your context-of-use (COU) before validation. For exploratory biomarkers, focus on detectability, precision, recovery, and parallelism. For decision-enabling studies, expand to inter-assay precision across days, lot-to-lot verification, dilutional linearity, and stability. Document SOPs with predefined acceptance limits.
Acceptance criteria: precision, accuracy/recovery, and reportable range
Set numeric gates before seeing results and adhere to them. Use endogenous samples where possible and recombinant spikes to confirm boundaries. Reportable range spans from LLOQ (precision/accuracy met) to ULOQ (highest standard meeting fit-for-purpose). Values <LLOQ should be reported as such, with a clearly stated imputation rule for analysis if needed.
Controls, plate layout, and lot-to-lot consistency
Include low/mid/high QCs on every plate; place duplicates/triplicates for critical analytes. Randomize sample positions to minimize edge effects. Track lot numbers and perform bridging when lots change; verify recovery and precision remain within predefined windows.
Sample handling and plate design
Pre-analytical handling and stability checks
Process serum and plasma promptly; avoid hemolysis and excessive freeze–thaw cycles. Validate short-term stability at bench, 4°C, and −20/−80°C, and document transport conditions. For matrix-specific considerations, review guidance for Serum & Plasma Luminex Cytokine Assay.
Duplicates/triplicates, QCs, and blanks placement
Use duplicates for screening runs and triplicates for pivotal validations. Place blanks and QCs strategically to diagnose drift and carryover; consider columns/rows away from edges for standards and QCs when feasible. Maintain consistent plate maps across runs for comparability.
Species cross-reactivity and analyte selection tips
Confirm antibody cross-reactivity for your species; avoid assuming human pairs translate to mouse/rat without data. If cross-reactivity is uncertain, perform a small monoplex check. For multiplex designs, prefer validated, magnetic-bead-based kits and review crosstalk data.
Data analysis and reporting standards
Standard curves (4PL/5PL), outlier policy, and comparability
Choose 5PL for asymmetrical standard curves and 4PL when symmetry holds. Maintain the same model for a given analyte across studies for comparability. Predefine outlier tests and thresholds and apply consistently; inspect residuals and the weighting scheme.
Handling below-LLOQ/above-ULOQ and dilutional linearity
Do not extrapolate below LLOQ. For >ULOQ, dilute and reanalyze; confirm dilutional linearity (R² ≥0.95; recovery 70–130%). Document your imputation rule for <LLOQ (e.g., LLOQ/2) if used for summary statistics; avoid mixing rules across studies.
Documentation: lot numbers, run logs, and QC summaries
Maintain run logs with operator, date, instrument, software version, bead lot, and plate IDs. Archive standard curve parameters and QC summaries with acceptance decisions and any deviations. For extended methodological context, see this technical overview on method choice: How to Choose the Right Cytokine Detection Method.
Operational and sourcing considerations
Lead times, support, and supplier collaboration
Engage suppliers early to understand lot availability, recommended MRDs, and matrix guidance. Request example CoAs and QC reports to verify detection limits and recovery in your matrix.
Cost per data point and resource planning
Model cost per data point by factoring instrument time, plate consumables, replicates, and potential re-runs due to matrix effects. Balance plex against the need to re-plate or dilute samples; sometimes a core panel vs expanded panel strategy controls costs and risk.
In-house vs service workflows and risk mitigation
Run in-house when instruments, trained staff, and QC infrastructure are available. Consider outsourcing when throughput is high, timelines are tight, or cross-study standardization is paramount. If outsourcing, align on reportable ranges, QC gates, data formats, and ownership. Clarify that "panel" is your analyte selection, while "kit" is the delivery format for in-house use; predefined panel vs custom panel decisions should reflect your coverage and validation requirements.
Conclusion
A defensible selection of a Luminex cytokine panel follows a clear arc: define pathway/species/matrix, shortlist predefined and custom options, run a head-to-head pilot against numeric acceptance gates, then lock criteria and scale. Prioritize reproducibility, matrix tolerance, and well-documented SOPs so your multiplex biomarker panel yields decision-ready data across studies.
Next steps: finalize your panel design, schedule a pilot, and lock QC gates and documentation. To explore ready-to-run options or start a custom configuration in one place, you can review representative View Panels or customization-enabled pages such as the Mouse Luminex Multiplex Assay Panel and the Human Luminex Multiplex Assay Panel.
FAQs
What is the difference between a custom and predefined cytokine panel?
A predefined panel is a curated set of analytes optimized for common matrices and fast startup. A custom cytokine panel design aligns analytes to your pathway or disease hypothesis. Tip: Pilot both and select based on detectability, precision (CV), recovery, and parallelism.
What is the maximum number of cytokines I can measure in one multiplex panel?
MAGPIX typically supports up to 50-plex, Luminex 200 up to ~100-plex (80 on MagPlex), and FLEXMAP 3D up to 500 bead regions per sample according to manufacturer documentation; practical plex is driven by assay performance and sample volume rather than instrument theoretical limits. Tip: Choose plex based on instrument access, sample volume, and assay performance per analyte.
Which matrix is better for cytokine panels: serum or plasma?
Plasma often yields higher measurable cytokine concentrations for several targets, and anticoagulant choice matters (EDTA or citrate are commonly preferred over heparin); you should validate matrix-specific differences for each analyte in your study. Tip: Pick one matrix and standardize pre-analytics; validate recovery and parallelism in your chosen matrix.
How can I reduce matrix effects in multiplex cytokine panels?
Mitigate matrix effects by using the recommended minimum required dilution (MRD), running spike-and-recovery tests, and confirming dilutional linearity during pilot experiments; these steps reveal how the matrix alters assay accuracy and guide appropriate dilutions or blockers. Tip: Verify spike-and-recovery (80–120%) and confirm dilutional linearity (R² ≥0.95) in your matrix.
How do I avoid cross-reactivity in multiplex panels?
Minimize cross-reactivity by selecting validated antibody pairs, preferring magnetic/paramagnetic bead-based kits, and performing monoplex versus multiplex comparisons to detect crosstalk; if an analyte shows consistent non-specific binding, remove or replace it from the panel. Tip: Check for crosstalk with monoplex vs multiplex comparisons and drop problematic analytes.
How should I choose the dilution factor for my cytokine panel?
Start from the kit's stated MRD and refine the dilution using dilutional linearity and parallelism with endogenous samples, confirming that most values fall within the reportable range; use serial dilutions during pilot runs to find the best compromise between detectability and matrix tolerance. Tip: Target %RE ≤20% across serial dilutions above LLOQ when selecting dilution factors.
Should I use MAGPIX or FLEXMAP 3D for my study?
Use MAGPIX for studies requiring up to ~50-plex and moderate throughput, and choose FLEXMAP 3D when you need high-plex capability and support for 96- or 384-well high-throughput formats; match instrument choice to your plex needs, plate format, and plate-per-day throughput requirements. Tip: If you need faster 96-well reads or 384-well support, FLEXMAP 3D is generally better suited.
How do I validate a custom cytokine panel?
Define your context of use (COU) first, then evaluate detectability, intra- and inter-assay precision, spike-recovery, parallelism, dilutional linearity, and sample stability in a pilot, and lock numeric acceptance criteria before analyzing pilot data and document them in SOPs. Tip: Lock numeric acceptance criteria in advance and record them in your SOPs.
What is the role of a "kit" in panel selection?
A panel defines the analyte set and study design; a kit is the delivery format for running that panel in-house, so decide predefined versus custom panel coverage first and then select a compatible multiplex assay kit if you plan to run assays internally. Tip: Decide predefined vs custom panel first, then select a compatible multiplex assay kit when running in-house.
Which curve model should I use: 4PL or 5PL?
Use 5PL for asymmetrical standard curves common in biological assays and 4PL for more symmetrical curves; maintain the same model across runs for comparability and choose weighting and outlier-handling policies and fix them in your analysis SOP. Tip: Define the curve model (4PL or 5PL) in your analysis SOP and avoid changing it mid-study.
References and further reading
- DiaSorin official instrument pages: DiaSorin MAGPIX system (product page) , DiaSorin Luminex 200 system (product page) , and DiaSorin FLEXMAP 3D system (product page) .
- Rountree et al., 2024 — multi-site proficiency analysis on bead type and assay variability: Paramagnetic bead-based Luminex assays improve precision and accuracy (J. Immunol. Methods, 2024) .
- Creative Proteomics — technical context and extended methods: How to Choose the Right Cytokine Detection Method (technical article) .
Authoritative guidance and regulatory anchors
For the numeric acceptance criteria and verification workflows referenced in this guide, consult the following authoritative frameworks and summaries:
- CLSI precision guidance: CLSI EP05‑A3 (Precision—Evaluation of within-laboratory variability) — practical summary and implementation notes (ANSI overview).
- CLSI detection capability: CLSI EP17‑A2 (Detection capability—LoB/LoD/LoQ) — consult CLSI documentation and public explainers for verification study designs and LoB/LoD calculations.
- FDA bioanalytical context: FDA Bioanalytical Method Validation guidance (2018) — method-validation principles and reporting expectations relevant to fit-for-purpose biomarker assays.
Notes and best practice pointers
- Where CLSI standards are paywalled, rely on official summaries or professional-laboratory toolkits for practical implementation details; always cite the primary CLSI document when reporting formal validation methods.
- Prefer primary, canonical sources (manufacturer datasheets, peer-reviewed articles, and official guidance) when declaring numeric acceptance criteria in SOPs or reports.
